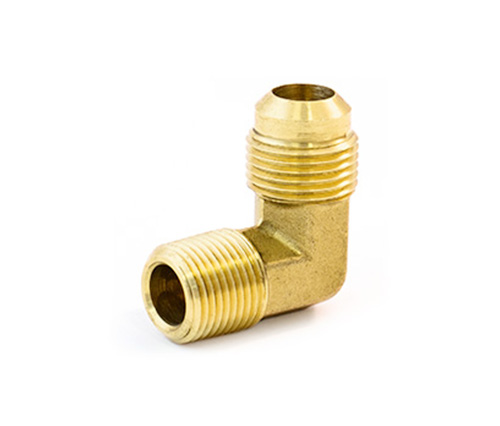

49# SAE 45 ° FLARE مزورة 90 درجة من الذكور النحاس النحاس تجهيزات

جزء#

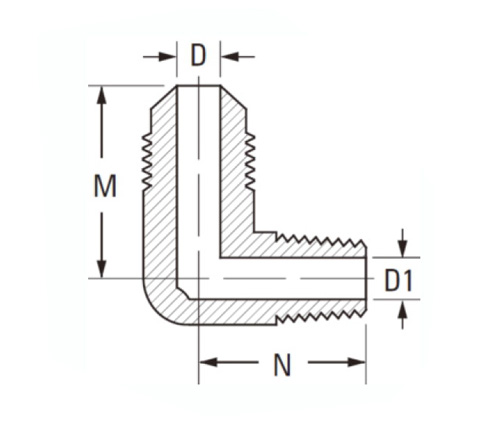

Flare O.د × Thread

D1

D

م

ن

49-2A

1/8 × 1/8

.219

.126

.63

.73

49-3A

3/16 × 1/8

.219

.126

.75

.75

49-4A

1/4 × 1/8

.219

.189

.81

.76

49-4 ب

1/4 × 1/4

.312

.189

.88

.94

49-4C

1/4 × 3/8

.438

.189

.92

1.01

49-4D

1/4 × 1/2

.562

.189

1.02

1.09

49-5A

5/16 × 1/8

.219

.219

.91

.88

49-5 ب

5/16 × 1/4

.312

.219

.95

.95

49-5C

5/16 × 3/8

.438

.219

.98

1.01

49-6A

3/8 × 1/8

.219

.282

1.00

.91

49-6B

3/8 × 1/4

.438

.282

1.06

1.01

49-6C

3/8 × 3/8

.438

.282

1.05

1.08

49-6D

3/8 × 1/2

.562

.282

1.10

1.00

49-8B

1/2 × 1/4

.312

.408

1.19

1.00

49-8C

1/2 × 3/8

.438

.408

1.19

1.00

49-8D

1/2 × 1/2

.562

.408

1.16

1.13

49-8E

1/2 × 3/4

.750

.408

1.38

1.38

49-10B

5/8 × 1/4

.312

.500

1.34

1.22

49-10C

5/8 × 3/8

.438

.500

1.34

1.22

49-10D

5/8 × 1/2

.562

.500

1.35

1.38

49-10E

5/8 × 3/4

.750

.500

1.44

1.38

49-12d

3/4 × 1/2

.562

.625

1.60

1.48

49-12E

3/4 × 3/4

.750

.625

1.60

1.62
